IP66 36V DC 5mA Oil Moisture Sensor Oil Condition Sensor

Name: IP66 36V DC 5mA Oil Moisture Sensor Oil Condition Sensor
Brand: CSPPM
Price: 1 USD

IP66 36V DC 5mA Oil Moisture Sensor Oil Condition Sensor Manufactures

Brand Name : CSPPM

Model Number : PPM-HLW-2A

Certification : CE

Place of Origin : China

MOQ : 1

Packaging Details : Standard package

Water Measuring range : 0~1 aw

Temperature measuring range : -40~+80℃

Digital output signal : RS485 MODBUS, RS232 available

Analog output signal : 4~20mA, 0~20mA resistance load ＜500Ω

Process connection : G1/2’’ ISO, 1/2’’ NPT

Pressure range : 100 bar

Material : Stainless Steel 316L

Power supply : 9~36V DC, load current＜5mA

Electric connection : M8*1, 6 core cable, 2m

Ingress protection : IP 66

Contact Now

PPM-HLW-2A Online Micro water Sensor for Oil

Description

The PPM-HLW-2A adopts advanced water content sensitive element and temperature sensitive element, it can measuring water content, water activity and temperature in harsh environment continuously, accurately, fast.

Measuring oil: lubricant oil, hydraulic oil, engine oil, fuel, insulating oil, turbine oil, etc.

Features

1. Measuring water activity of oil fast and continuously;

2. Measuring water content accurately;

3. High stability in harsh area;

4. Small in size.

Specifications

Water activity
Measuring range	0~1 aw
Accuracy	0~0.6±0.02 aw
	0.6~0.9±0.03 aw
	0.9~1±0.04aw
Response time	＜ 1 min
Water content
Measuring range	0~3000 ppm
Measuring range	±10%
Temperature
Measuring range	-40~+80℃
Accuracy	±0.2℃
Operating temperature	-40~+60℃
Storage temperature	-40~+80℃
Oil temperature permitted	-40~+120℃
Output signal
Digital output signal	RS485 MODBUS, RS232 available
Analog output signal	4~20mA, 0~20mA resistance load ＜500Ω
Others
Process connection	G1/2’’ ISO, 1/2’’ NPT
Pressure range	100 bar
Material	Stainless Steel 316L
Ingress protection	IP 66
Power supply	9~36V DC, load current＜5mA
Weight	200g
Electric connection	M8*1, 6 core cable, 2m
Certification	CE, EN61326 EN61326-2-3 ICES-003B

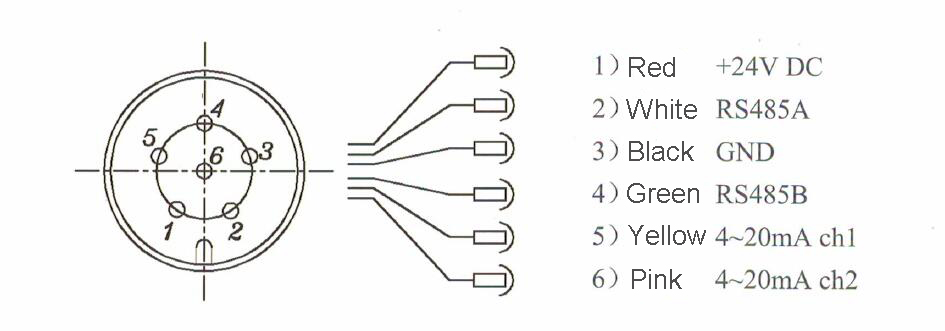

Wiring diagram:

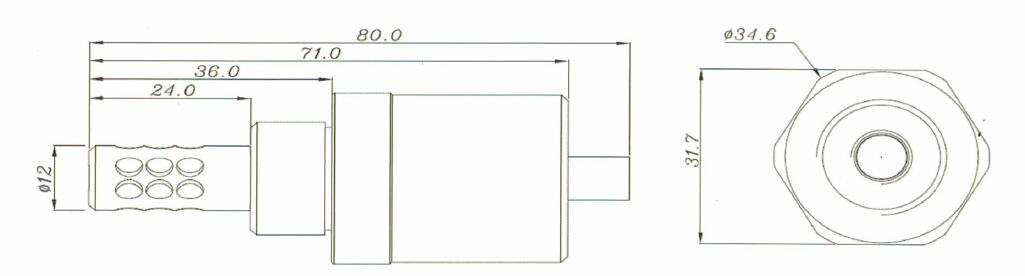

Dimension in mm:

IP66 36V DC 5mA Oil Moisture Sensor Oil Condition Sensor

Product Tags:

36V DC Oil Moisture Sensor

IP66 Oil Moisture Sensor

IP66 Oil Condition Sensor

IP66 36V DC 5mA Oil Moisture Sensor Oil Condition Sensor Images
