Hammer Union Pressure Transmitter Sensor 32VDC 15000psi

Product Categories
Changsha Taihe Electronic Equipment Co., Ltd.
Contact Now

Hammer Union Pressure Transmitter Sensor 32VDC 15000psi

  • 1
  • 2

Brand Name : CSPPM

Model Number : PPM-T293A

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : CSPPM

Supply Ability : 1000pcs per month

Delivery Time : 5-8 working days

Packaging Details : Standard export packing, including instructions and certificate

Tested Media : Wet Soil,Oil,Corrosive liquidand gas

Pressure type : Gauge pressure(G), Sealed pressure(S), Vent Pressure(V)

Full Scale Pressure Range : 0~ 5000psi, 6000psi, 0~ 10000psi , 0~ 15000psi , 0~ 20000psi

Supply Voltage : 10-32VDC

Output Signal : 4-20mA,0-5VDC,1-5VDC,0-10VDC,3mV/V

Installation : “1502” Hammer Union

Electrical Connection : Aviation connector or Direct outgoing

Combined Accuracy : 0.5%FS, 0.25%FS

Long-Term Stability : ≤ ± 0.1%FS/Year

Working medium temperature : -40~ +90ºC

Operating Temperature : -40~ +90ºC

Contact Now

0~ 20000psi Choke Manifolds Hammer Union Pressure Transmitter Sensor

Product introduction:

PPM-T293A special sensor for fracturing truck adopts imported high-quality elastomer and digital processing chip, stainless steel overall package, good moisture-proof and sealing, and has passed thousands of fatigue impact tests before leaving the factory. It has fast dynamic response, high accuracy, anti-vibration and anti-fatigue. , Strong anti-eccentricity, strong structure, corrosion resistance and other characteristics; the product uses a spherical seal, easy installation, easy to use. Provide customized services.

Applications

Oil well drilling and servicing, Acidizing, Choke Manifolds, Extraction, Fracturing and Cementing, Service and Cement Trucks, Standpipe.

Technical Parameters :

Tested Media : Wet Soil,Oil,Corrosive liquidand gas
Pressure type: Gauge pressure(G), Sealed pressure(S), Vent Pressure(V)
Full Scale Pressure Range : 0~ 5000psi, 6000psi, 0~ 10000psi , 0~ 15000psi , 0~ 20000psi.
Supply Voltage : 10-32VDC
Output Signal: 4-20mA,0-5VDC,1-5VDC,0-10VDC,3mV/V
Installation : “1502” Hammer Union
Electrical Connection : Aviation connector or Direct outgoing
Combined Accuracy : 0.5%FS, 0.25%FS
Long-Term Stability: ≤ ± 0.1%FS/Year
Working medium temperature : -40~ +90ºC
Operating Temperature : -40~ +90ºC

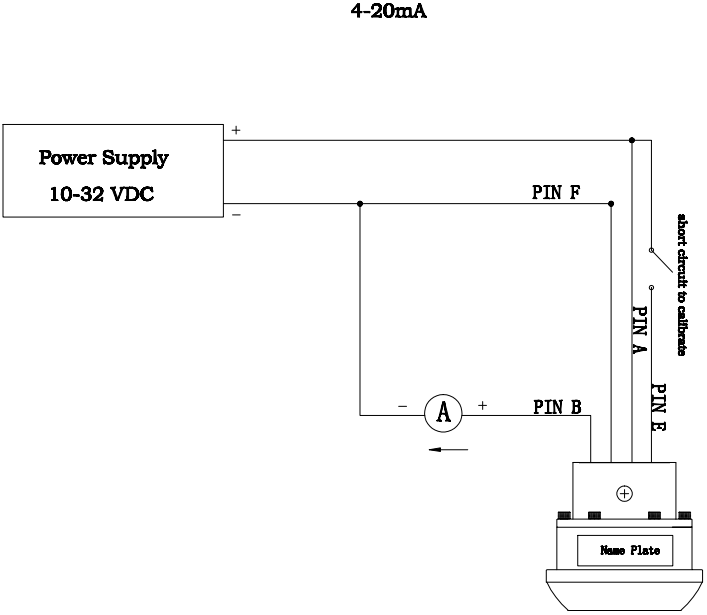

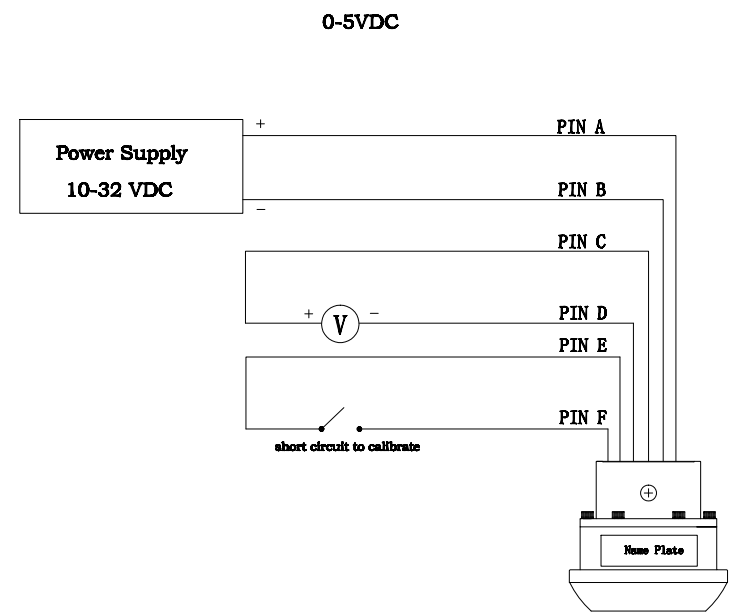

Definition of wiring:

Hammer Union Pressure Transmitter Sensor 32VDC 15000psi

Hammer Union Pressure Transmitter Sensor 32VDC 15000psi

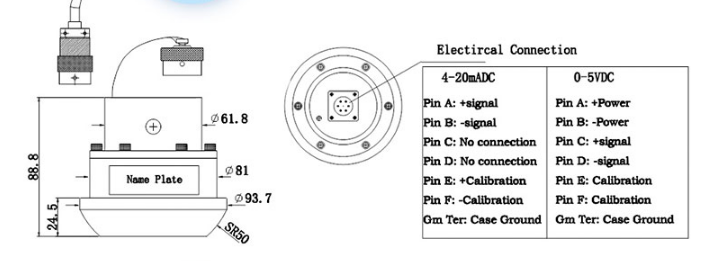

Dimensions in mm :

Hammer Union Pressure Transmitter Sensor 32VDC 15000psi
